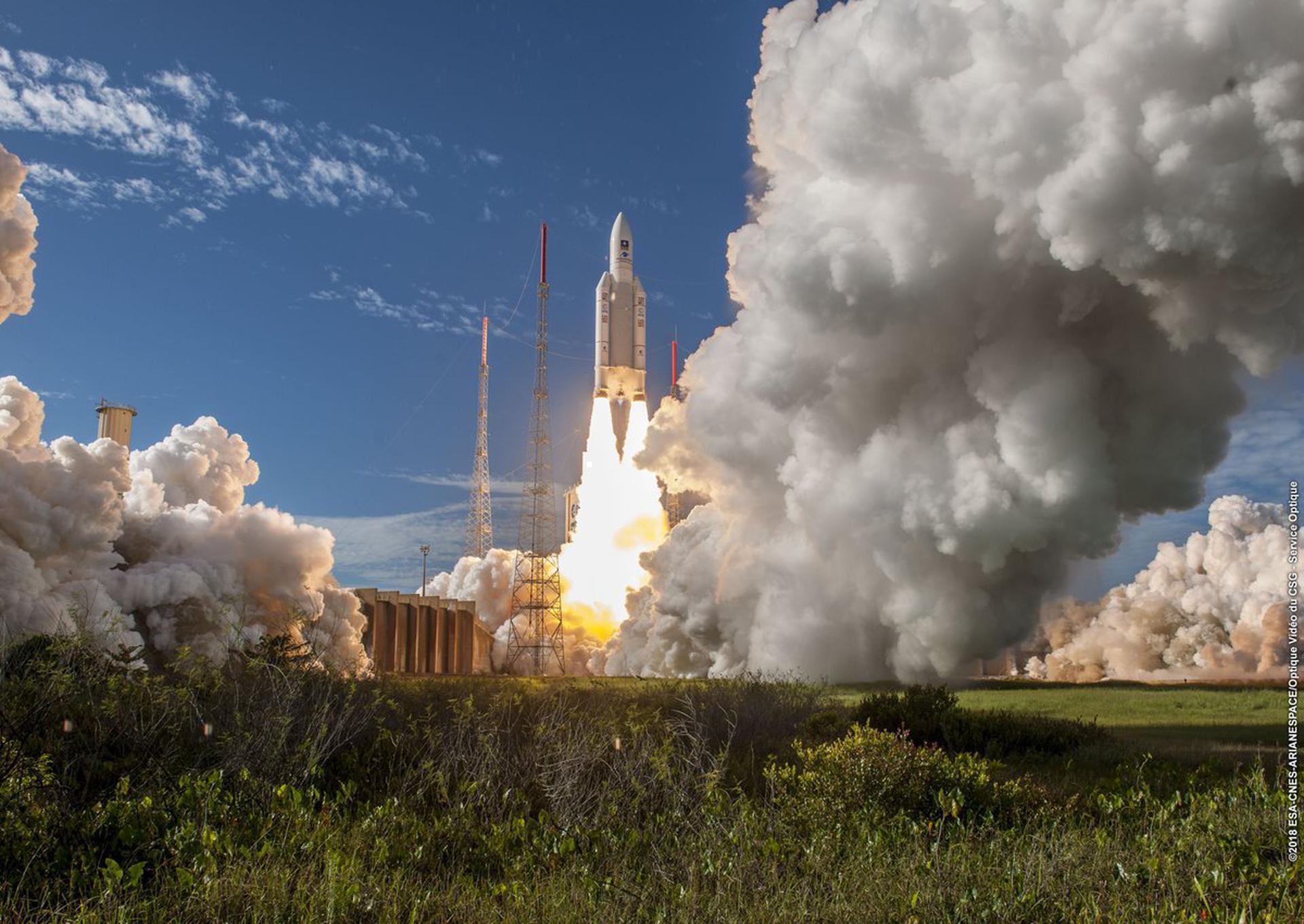

Ariane 5 ES
In-activeArianeGroup (AG)
March 9, 2008
Description
The Ariane 5 ES (Evolution Storable) has an estimated LEO launch capacity of 21,000 kg (46,000 lb). It includes all the performance improvements of Ariane 5 ECA core and boosters but replaces the ESC-A second stage with the restartable EPS used on Ariane 5 GS variants. It was used to launch the Automated Transfer Vehicle (ATV) into a 260 km circular low Earth orbit inclined at 51.6° and has been used 3 times to launch 4 Galileo navigation satellites at a time directly into their operational orbit. The Ariane 5 ES flew 8 times from 2008 to 2018 with no failures.
Specifications
-
Max Stage
2 -
Length
45.7 m -
Diameter
5.4 m -
Fairing Diameter
5.4 m -
Launch Mass
746.0 T -
Thrust
11400.0 kN -
Apogee (Sub-Orbital)
40000.0 km
Family
-
Name
Ariane 5 ES -
Family
― -
Variant
ES -
Alias
― -
Full Name
Ariane 5 ES
Payload Capacity
-
Launch Cost
― -
Low Earth Orbit
21000.0 kg -
Geostationary Transfer
Orbit
― -
Direct Geostationary
― -
Sun-Synchronous Capacity
―
ArianeGroup
Commercial
CEO: Christophe Bruneau
AG 2015ArianeGroup (formerly Airbus Safran Launchers) is an aerospace company based in France. A joint venture between Airbus and Safran, the company was founded in 2015 and is headquartered in Issy-les-Moulineaux. It consists of three core arms: aerospace, defence and security.
